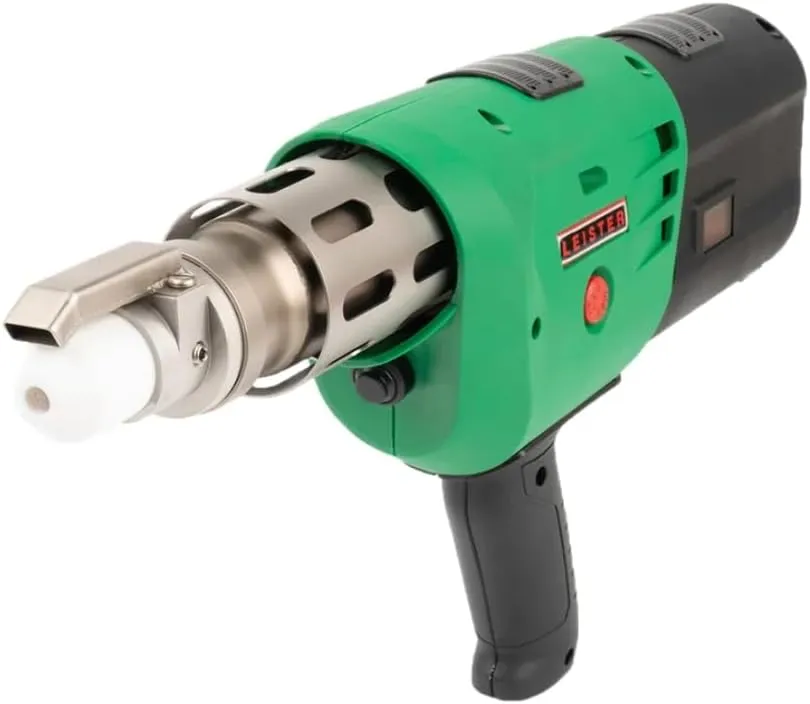

DETAILS Easy-to-use extrusion welder The FUSION 1 redefines extrusion welding with its compact and slim design. The double-sided rod intake offers increased flexibility and the attachable handle ensures increased agility in the welding process. An attachable handle ensures high agility in the welding process. The integrated LED light illuminates the welding zone optimally as needed. The FUSION 1 is the right extruder for plastic repairs and in pipe, tank and container construction. VOLTAGE 120 - 230 V FREQUENCY 50/60 Hz. 60 Hz POWER 1100 - 1450 W WELDING ADDITIVE ø 3-4 mm / 0.12-0.16 in MATERIAL OUTPUT Ø3 MM 0.2 - 0.5 kg/h MATERIAL OUTPUT Ø4 MM 0.3 - 0.8 kg/h WELDING MATERIALS PE. PP. LD-PE. HD-PE. LLD-PE. TPO AIR GUIDE Internal SCREW HEATING Air heated LENGTH 435.0 mm WIDTH 92.0 mm HEIGHT 133.0 mm WEIGHT 3.4 kg AIR TEMPERATURE CONTROL Closed loop PLUG US, 2 poles, 15A, polarized. CH T11, 2 poles, 10A. AU, 2 poles, 10A. KR, 2 poles, 16A. CEE blue, 3 poles, 16A. EU, 2 poles, 16A PROTECTION CLASS II CONFORMITY MARK CE. KC
