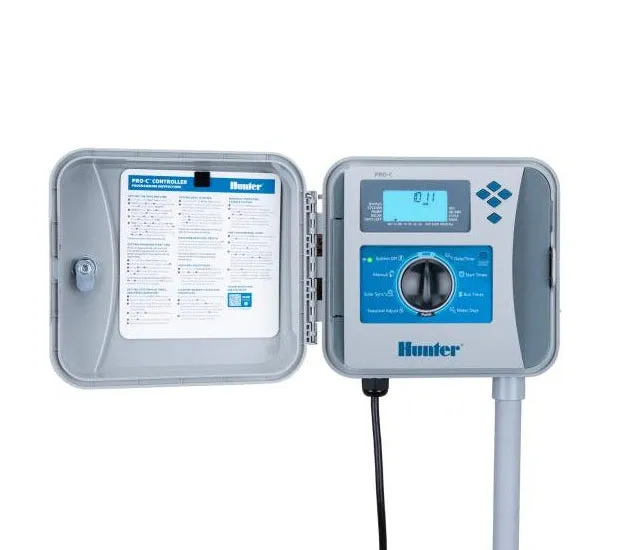

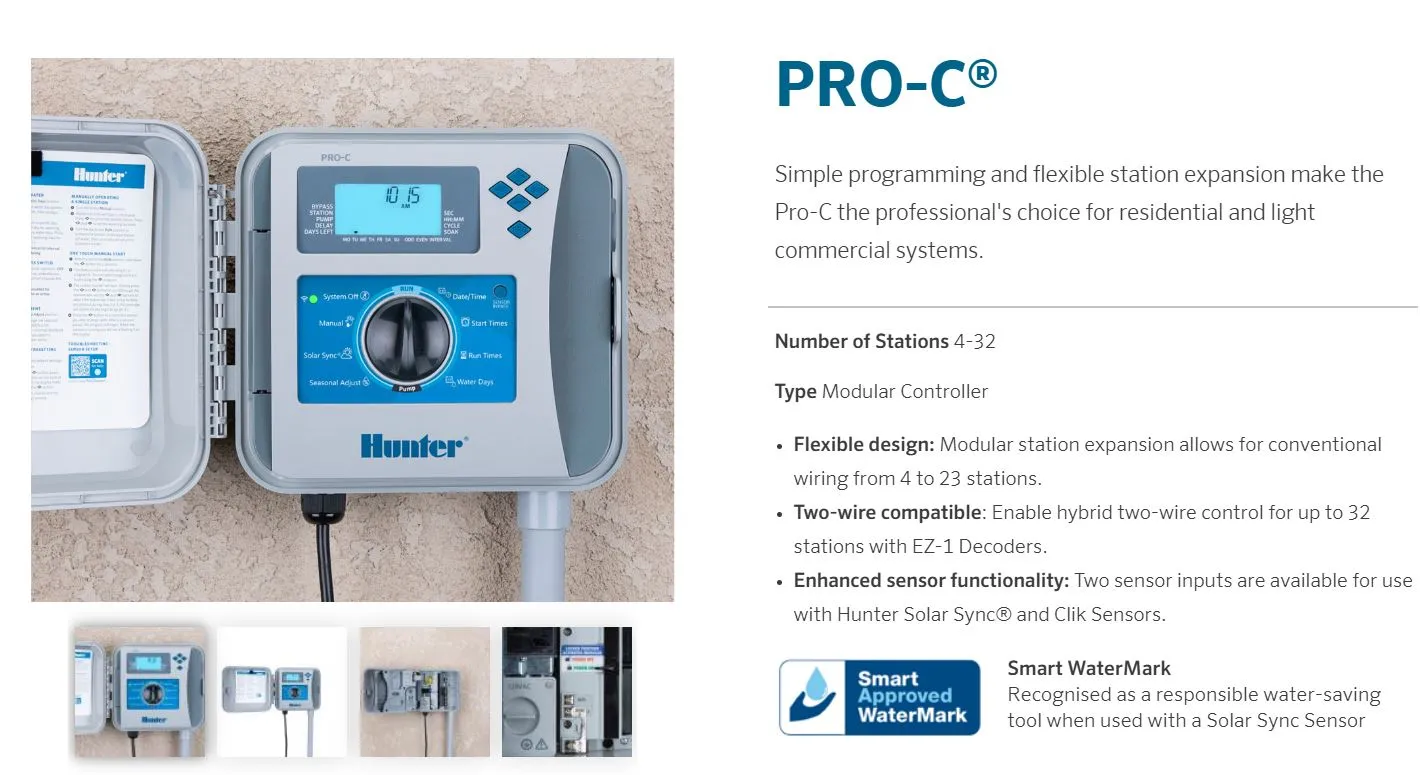

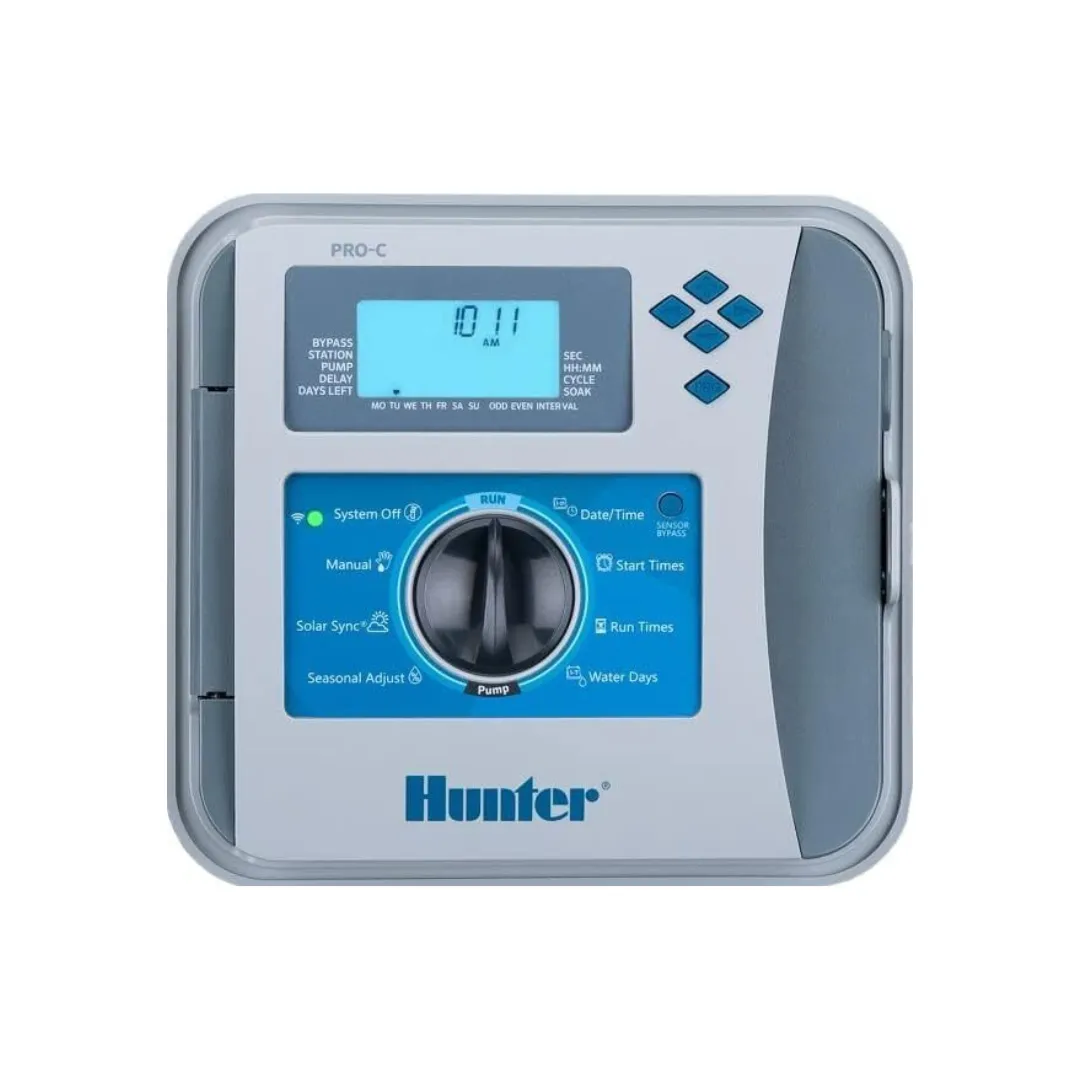

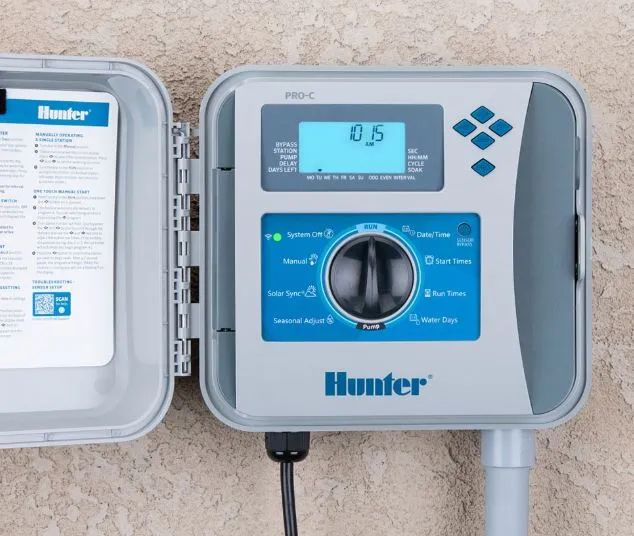

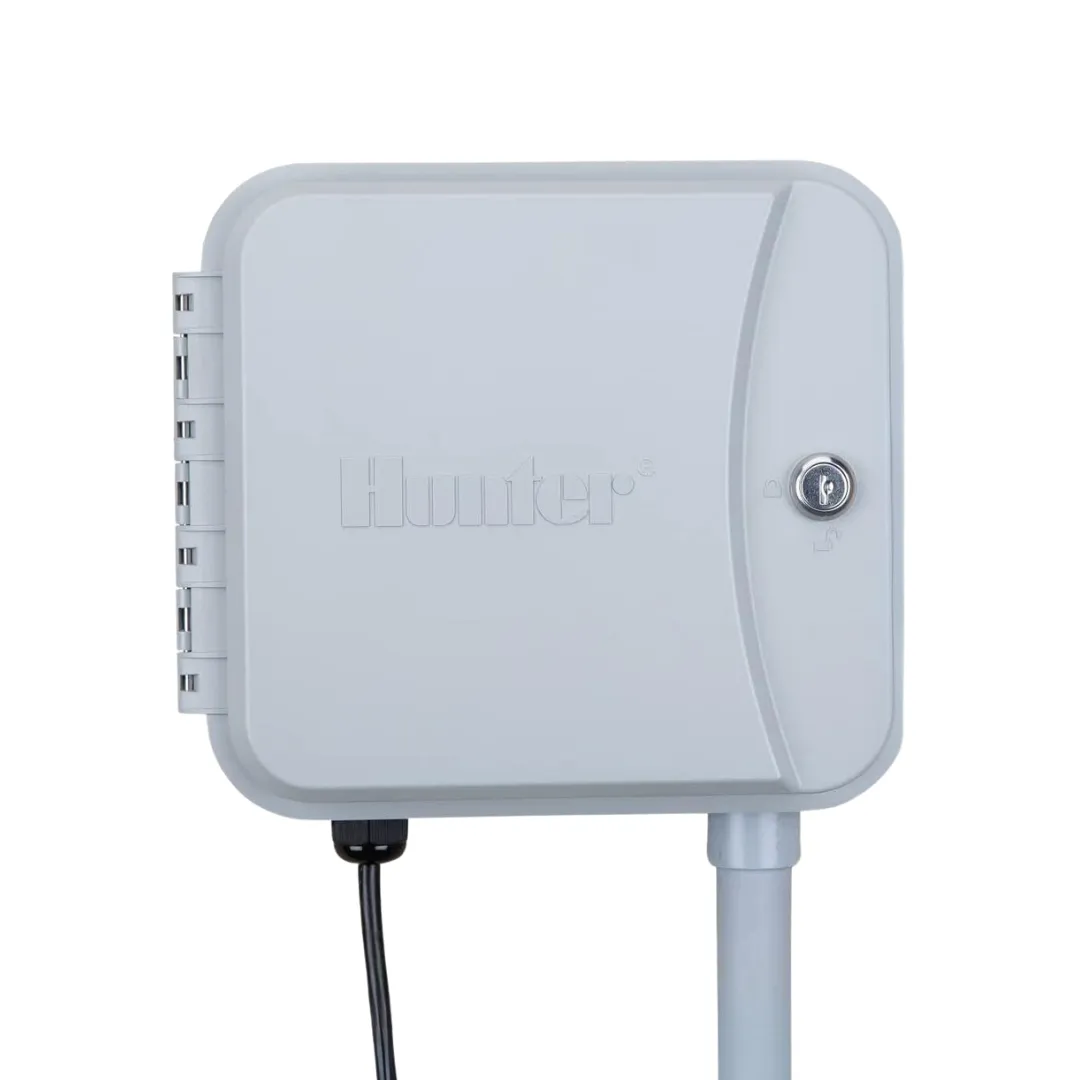

Hunter P2C Pro-C Modular Irrigation Controller and Modules
| DOWNLOAD PRODUCT BROCHURE | DOWNLOAD PRODUCT MANUAL |
Experience unmatched control and versatility with the Hunter P2C Pro-C Modular Controller, designed to elevate your irrigation system to new heights of efficiency and performance. The controller is very user-friendly, allowing you to customise your watering schedule with precision, ensuring optimal hydration while conserving water and minimising waste.

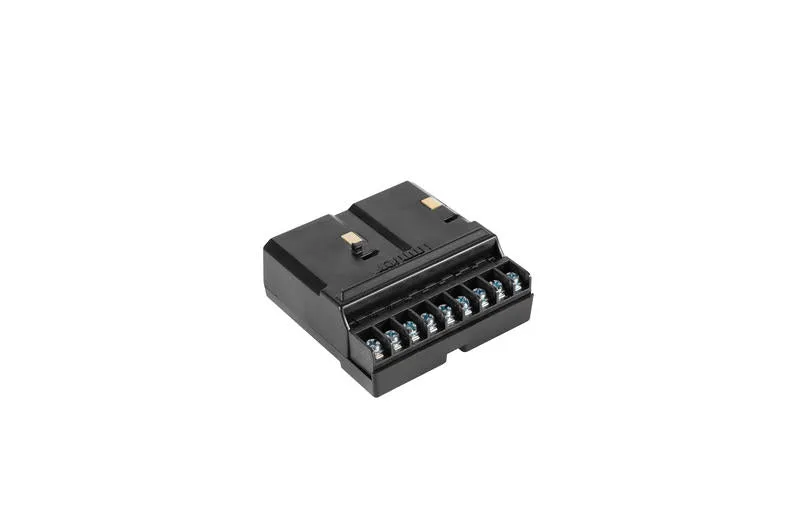

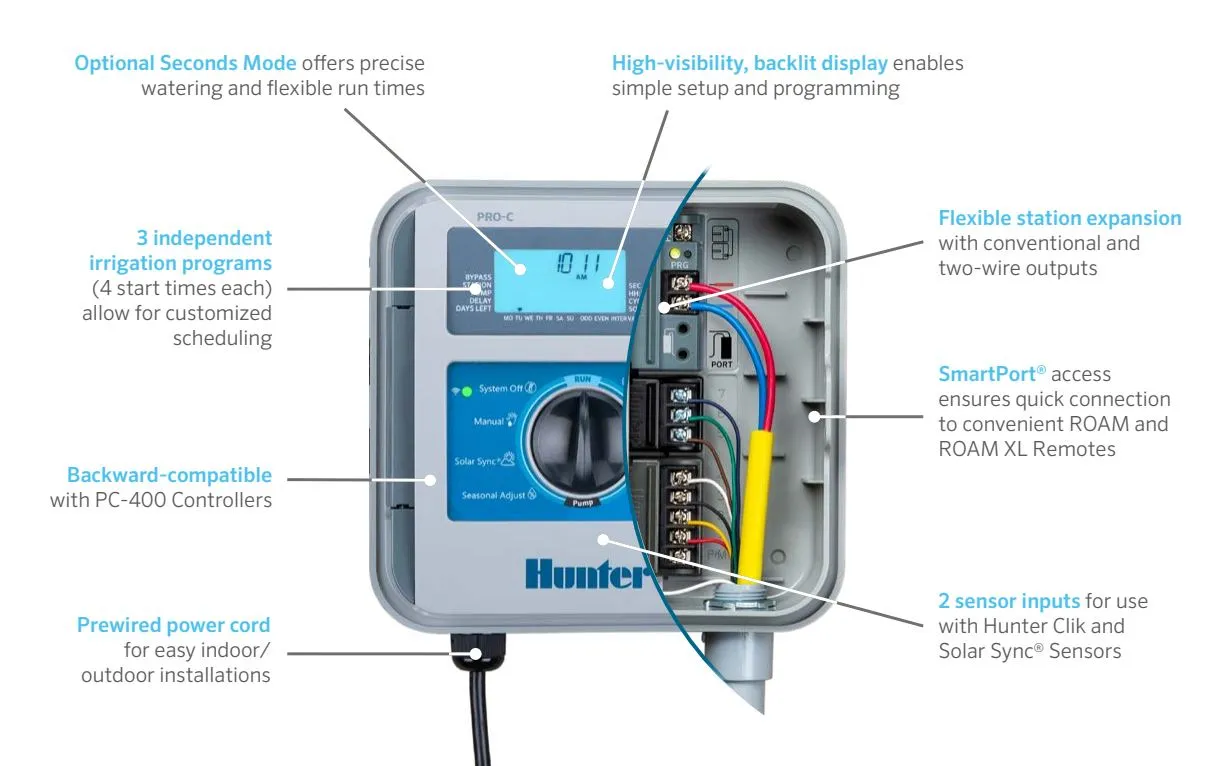

With easy "plug and play" modules this 4 station controller can easily be expanded up to 23 stations. Utilising the Two-Wire EZ Decoder will allow your controller to expand up to 32 stations with ease. The P2C Pro-C comes with a standard power lead for easy and clean installation.
EASY RETRIEVE MEMORY - A manual back-up utility that stores complete controller scheduling and setup information in back-up memory. This allows the saved watering schedule to be restored at any time. This can be used to set a controller back to its initial settings after tampering or at the beginning of a new season.
EASY RETRIEVE MEMORY - A manual back-up utility that stores complete controller scheduling and setup information in back-up memory. This allows the saved watering schedule to be restored at any time. This can be used to set a controller back to its initial settings after tampering or at the beginning of a new season.
QUICK CHECK - The QuickCheck feature makes field wiring issues easy to assess with the push of a button. QuickCheck displays an ERR message when a field wiring short is detected on a particular station number.
AUTOMATIC SHORT CIRCUIT PROTECTION - Automatic short circuit protection is a feature found in all Hunter AC powered controllers. This feature automatically detects electrical faults, which are typically caused by wiring issues. Only affected stations are skipped, allowing all other stations to water normally as programmed. There are no fuses to blow or internal circuit breakers to trip, so complete irrigation system shutdown is avoided.
DELAY BETWEEN STATIONS - Users can program a delay between stations as the controller advances from one station to the next. This delay can range from a few seconds (to permit slow-closing valves additional time to close) to a much longer period of time (to allow pressure tanks time to recharge), based on user requirements.
SENSOR PROGRAMMABILITY - The ability to specify which program will be shut down in response to a specific sensor alarm. This allows programs unaffected by the sensor to continue automatic operations.

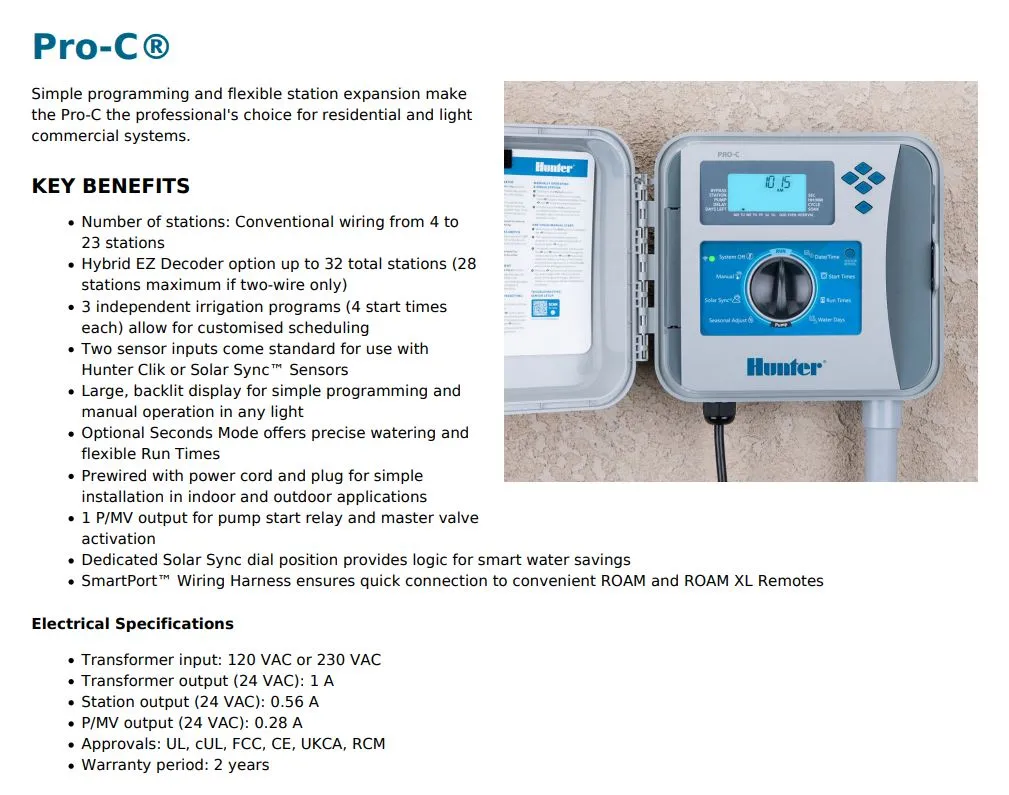

FEATURES
- Number of stations: Conventional 4 to 23 Stations
- With two-wire Ez-Decoder option up to 32 stations
- Independant programs: 3
- Start times per programe: 4
- 1 sensor input available for Clik sensors
ELECTRIC SPECIFICATIONS
- Transformer input: 120 VAC or 230 VAC (international model)
- Transformer output (24 VAC): 1 A
- Station output (24 VAC): 0.56 A
- Pump/master valve (24 VAC): 0.28 A
- Warranty period: 2 years
