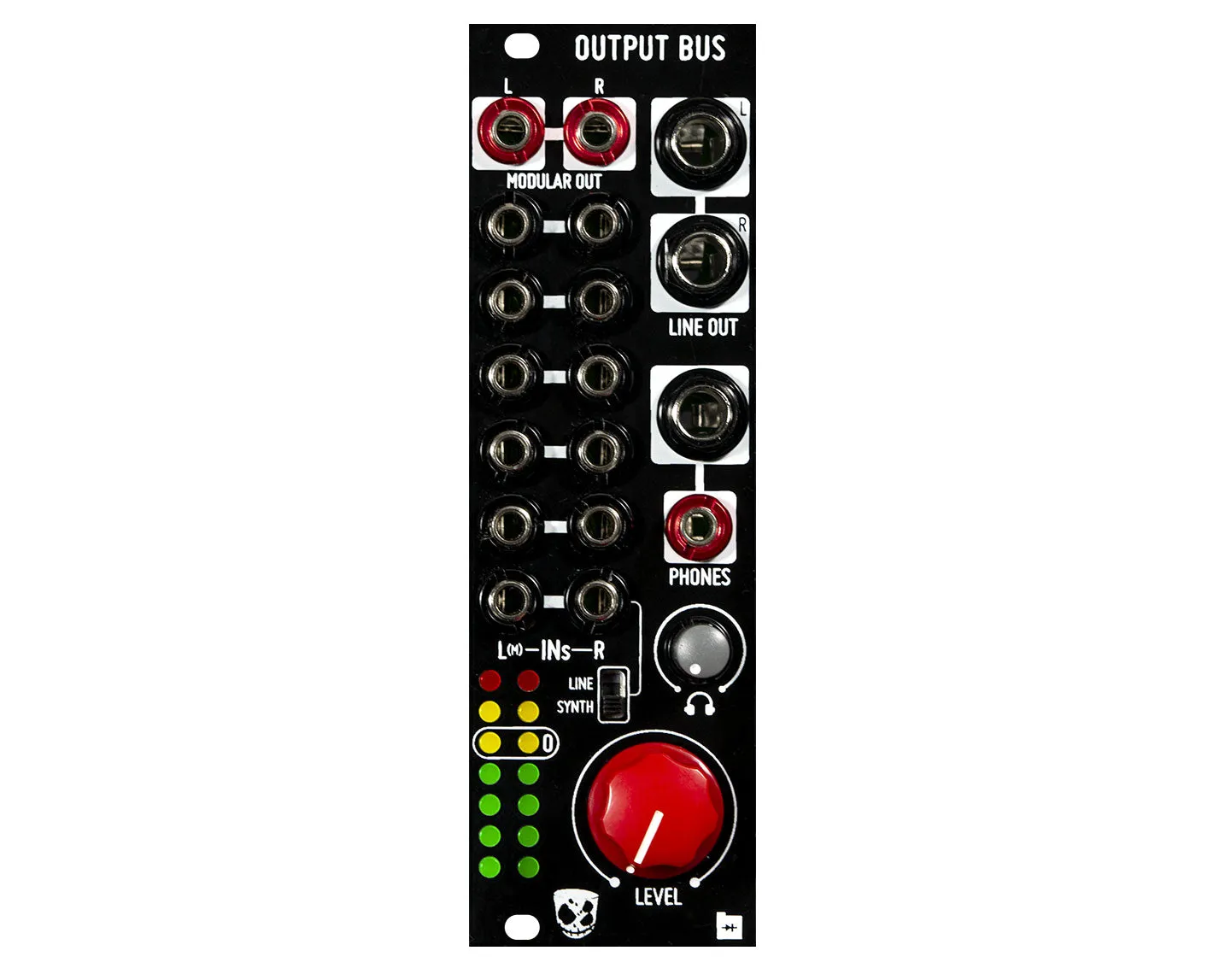

Presented by DivKid and Befaco, the Output Bus is the ultimate output module designed to be the final component in your modular chain.
Inspired by pro audio and studio summing units, the Output Bus allows for summed mixing, external gear integration, flexible output types, soft clip limiting, headphone monitoring and level visualisation.
Group other mixers in your setup, to return mono or stereo FX into the master bus and for bringing in external stereo line level gear easily; visualise your final levels, output appropriate signals on the right cable type and monitor in headphones, in just 8HP.
Features
- Six stereo inputs.
- Line/synth selector in input six.
- Modular level 3.5mm out.
- 6.5mm Jack balanced out.
- 3.5mm and 6.5mm phones out.
- Led Vu-meter.
- Soft clipping circuit at main output.
Video:
Product Specs
- Item Number: 31205
- Make: DivKid
- Model: Output Bus
- Condition: Brand New
- Finish: Black
- Categories: keyboards-and-synths ⇒ eurorack
- Function: External Mixer PreAmp Utility
- Made In: Spain
- MPN: DKA003
- Modular Grid: Eurorack ⓘ ＋
- Dimensions: 8 HP 30 mm deep
- Power: 70 mA 12V 68 mA -12V 0 mA 5V
